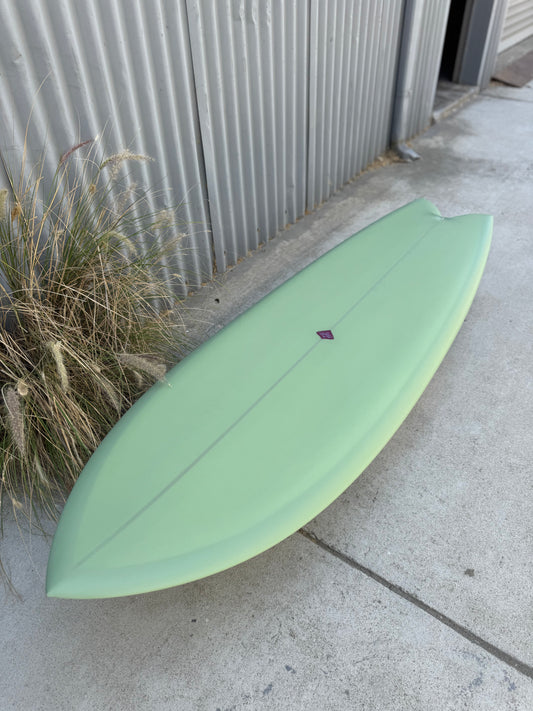

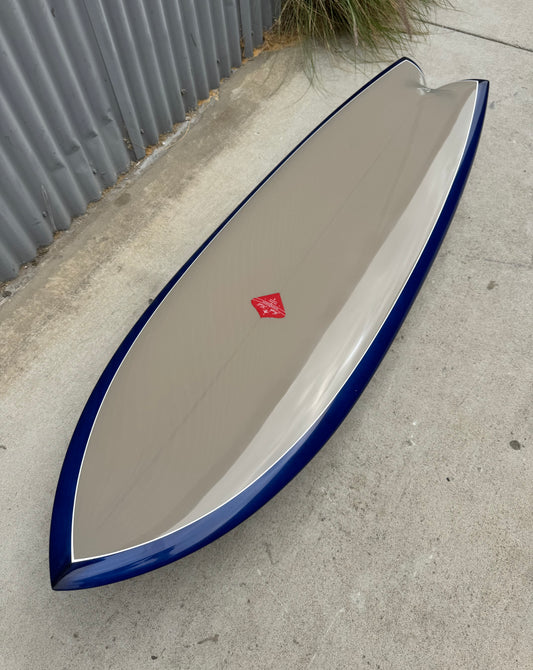

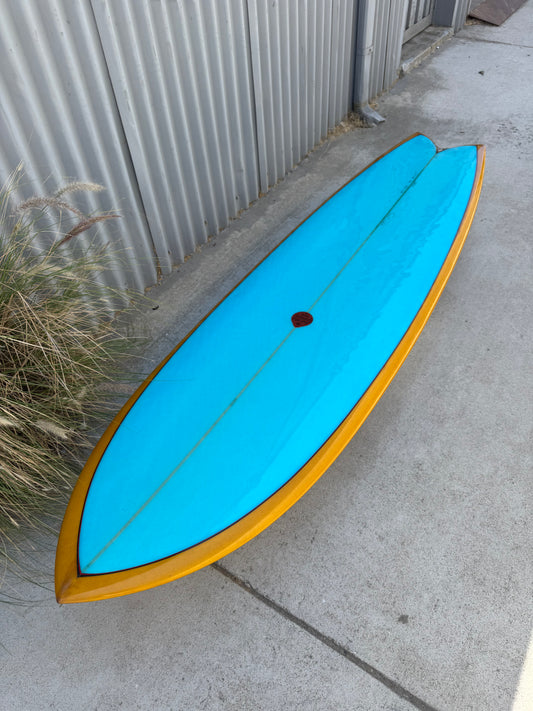

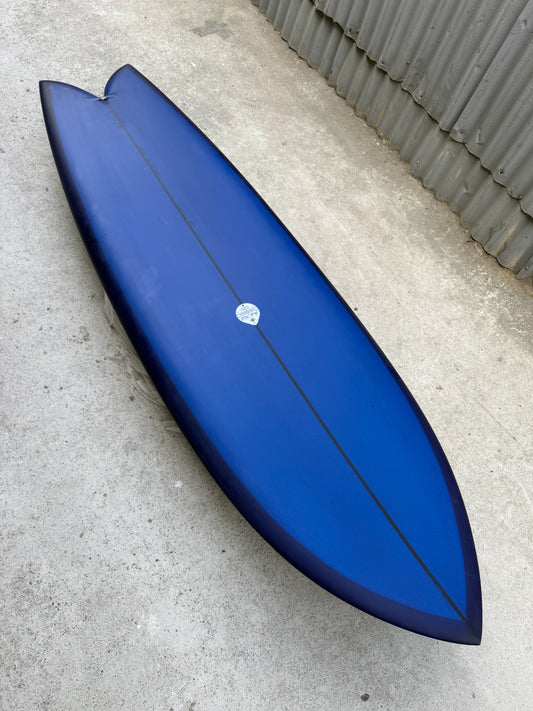

Gen 2 Keel

This user-friendly update to the classic fish outline has had some incredible results for my customers and teamriders. The Gen 2 Keel is a half inch wider than my SD Keel Fin except for the tail block—which is ½” narrower. Narrowing the tail block added a bunch of curve behind the fins, which loosened up the overall performance characteristics and made it much easier than most fish on your backhand.

GLASSING SCHEDULE: 6 oz. + 4 oz. deck, 6 oz. bottom.

FINS: Twin 8” x 5” wooden keels, double sided foil, straight back template.

ROCKER: Low nose entry, relaxed through the tail.

RAIL: Fish style: Down rail throughout—softened from nose toward tail, back third hard edged.

BOTTOM CONTOURS: Flat bottom with a slight single concave running through the fin area.

TYPE OF WAVES: Hollow reefs and long pointbreaks, optimal in head high and up to a few feet overhead.

STOCK DIMENSIONS

LENGTH WIDTH   THICKNESS
5'4 20 3/4" 2 1/4"
5'5" 20 7/8" 2 1/4
5'6" 21" 2 1/4"
5'7" 21" 2 3/8"
5'8" 21 1/8" 2 3/8"
5'9" 21 1/4" 2 3/8"
5'10" 21 3/8" 2 7/16"
5'11" 21 7/16" 2 7/16"
6'0" 21 1/2" 2 1/2"

*Also available 6’0”-7’1” in a Long Fish format
